Which of the following is not the characteristics of a reference electrode?

? Explanation: The output potential of a reference electrode must be insensitive to the composition of the solution. Explanation: Standard hydrogen electrode is called the primary reference electrode as its output potential is zero volts.

What is the purpose of a reference electrode?

The role of the reference electrode is to provide a stable potential for controlled regulation of the working electrode potential and in doing so allow the measurement of the potential at the working electrode without passing current through it. An ideal reference electrode should also have zero impedance.

What are reference electrodes explain with examples?

It is an electrode whose potential is arbitrarily taken as zero or is exactly known. Standard Hydrogen Electrode (SHE), calomel electrode, silver-silver chloride electrode and glass electrode are some examples of reference electrode.

Which of the following is used as reference electrode?

In saturated calomel electrode which is a reference electrode is made up of Hg2Cl2.

What is reference electrode and its types?

A reference electrode is an electrode which has a stable and well-known electrode potential. The high stability of the electrode potential is usually reached by employing a redox system with constant (buffered or saturated) concentrations of each participant of the redox reaction.

What is an indicator electrode and give two examples?

Ion-Selective Electrodes

In redox methods an indicator electrode is used to sense the presence or change in concentration of the oxidized and reduced forms of a redox couple. For example, a zinc rod responds to Zn(II) concentration, a copper rod responds to Cu(II), and mercury to Hg(II).

What are the two indicator electrodes?

classes of indicator electrodes are used in potentiometry: metallic electrodes, which are the sub- ject of this section, and ion-selective electrodes, which are covered in the nextsection. The potential of a metallic electrode is determined by the position of a redox reaction at the electrode–solution interface.

What is the standard reference electrode?

A standard reference electrode is an electrode that has a known electrical potential. A standard reference electrode has many uses, but the most common is when it is used to determine the potential of another material in an electrochemical cell.

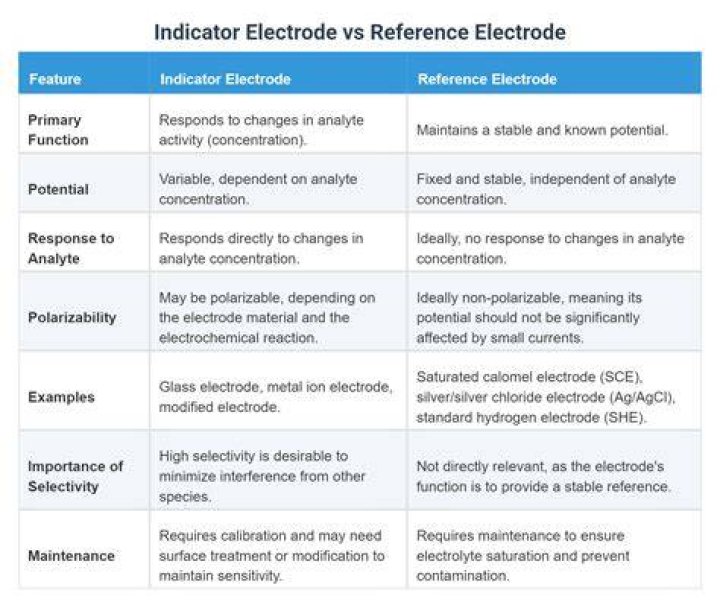

What is the difference between reference electrode and indicator electrode?

The key difference between indicator electrode and reference electrode is that indicator electrode responds to changes in the activity of the analyte, whereas reference electrode does not respond to changes, and its response is stable.

What is mean by indicator electrode and reference electrode?

generally used are hydrogen electrodes, calomel electrodes, and silver chloride electrodes. The indicator electrode forms an electrochemical half cell with the interested ions in the test solution. The reference electrode forms the other half cell.

Which electrode can be used as both indicator and reference electrode?

Answer. – Referrence electrode is an electrode having an accurately maintained potential, used as a reference for measurement by other electrodes. – A referrence electrode is used as half cell in electrochemical cell so that potential of the other half cell (indicator electrode) is determined.

Which is primary reference electrode?

The Standard Hydrogen Electrode (SHE) is considered the primary reference electrode as it defines the zero point in the electrochemical scale.

What are the major requirements of a reference electrode?

A secondary reference electrode must fulfill the following criteria: (i) it should be chemically and electrochemically reversible, i. e. its potential is governed by the Nernst equation and does not change in time; (ii) the potential must remain almost constant when a small current passes through the electrode and

What is a reference electrode EEG?

In EEG, voltages recorded at each electrode are relative to voltages recorded at other electrodes. Often, the mastoids are chosen as reference electrodes, because while being close in distance to the electrodes, they record less signal from the brain.

How do you convert reference electrode potentials?

1. The general equation for this conversion at any pH using Ag/AgCl reference electrode is:
2. E_(RHE) = E_Ag/AgCl + 0.059 pH + E^o_Ag/AgCl
3. Where E^o_Ag/AgCl = 0.1976 V at 25^oC and E _Ag/AgCl is your working potential.

Why calomel electrode is used as reference electrode?

: This reference electrode consists of a mercury and mercury-chloride molecules. This electrode can be relatively easier to make and maintain compared to the SHE. This a widely used reference electrode because it is inexpensive and not as toxic as the Calomel electrode that contains mercury.

How does a silver chloride electrode work?

The electrode is a silver wire that is coated with a thin layer of silver chloride, either physically by dipping the wire in molten silver chloride, chemically by electroplating the wire in concentrated hydrochloric acid or electrochemically by oxidising the silver in a chloride solution.

What is the potential of saturated calomel electrode?

The saturated calomel electrode (SCE)

A one molar solution of potassium chloride in water forms the aqueous phase in contact with the mercury and the mercury(I) chloride. The measured potential, E, of the SCE is +0.241 V (SHE) for a saturated chloride ion solution at 298 K.
